Tom Bullweed

Cap&Ball speedloader

Recommended Posts

Loading my 1851s at the range in the traditional way (measure 25 grains of powder, put powder in chamber, put in wad, seat bullet) takes 4-5 minutes per pistola.

This speedloader cuts that time to 2 minutes and lets me measure powder in a much more controlled situation.

2" of 3/8" polytube from hardware store

3/8" poplar dowel cut to 7/16", glued to polytube

25 grains of powder

.454" round ball

Pull ball, pour powder seat wad, ram ball.


  • Like 1

Share this post


Link to post
Share on other sites

Used something similar for hunting loads.

Good that you found a way that works for you.

--Dawg

Share this post


Link to post
Share on other sites

This is a speed loader a friend made for me.



Diamond Curley has the metal version now:D



  • Like 2

Share this post


Link to post
Share on other sites

I'm going to have to try that (the tubing method).



BS

Edited by Barry Sloe

Share this post


Link to post
Share on other sites
1 hour ago, Major Crimes said:

This is a speed loader a friend made for me.



Diamond Curley has the metal version now:D



I like my speed loader . Thanks again Major Crimes

  • Like 1

Share this post


Link to post
Share on other sites
10 hours ago, Major Crimes said:

This is a speed loader a friend made for me.



Diamond Curley has the metal version now:D



Can you lay a cylinder over that and tip it up to load all five chambers with powder at once?  Like to find out more about this

Share this post


Link to post
Share on other sites

I’m thinking if you consider the time it takes you to prep those gizmos and loaders and such, plus using them, you are not saving much, if any, time at all. (Compared to loading on the gun,)  But if you have fun with them knock yourselves out!  :D

Edited by J-BAR #18287
  • Thanks 1

Share this post


Link to post
Share on other sites

I think the search is for whether it speeds up that time at the loading table??  Shux if we figure that time we spend at our (Big Blue, Big Red or whichenever) reloading  machine against our time at the loading table then there is 'no search' for a Holy Grail!!!  For some of us it gets a bit embarrassing sometimes when fokes at the loading table have to circle around us to keep the match moving.  As my times on the firing line would indicate, I choke under pressure and this even starts for me at the loading table when I get hold of a squirrelly cap or any of the other 2001 things that seem to crop up.

  • Like 1

Share this post


Link to post
Share on other sites
8 minutes ago, Slowhand Bob, 24229 said:

I think the search is for whether it speeds up that time at the loading table??  Shux if we figure that time we spend at our (Big Blue, Big Red or whichenever) reloading  machine against our time at the loading table then there is 'no search' for a Holy Grail!!!  For some of us it gets a bit embarrassing sometimes when fokes at the loading table have to circle around us to keep the match moving.  As my times on the firing line would indicate, I choke under pressure and this even starts for me at the loading table when I get hold of a squirrelly cap or any of the other 2001 things that seem to crop up.


I’m confused...it sounds like you are recharging your chambers at the loading table?  The only thing I do at the loading table is put cartridges in the rifle and caps on the nipples.  Recharging the revolver chambers is done off the firing line. There is no SASS rule requiring percussion gun chambers to be recharged at the loading table.  I guess a club might have a local rule but I don’t see the point.

  • Like 2

Share this post


Link to post
Share on other sites

I thought Cap&Ball and speedloader were mutually exclusive terms ........ who'd a thunk it ?

  • Like 1
  • Haha 4

Share this post


Link to post
Share on other sites

I generally reload at the unloading table, briefly pausing to check other shooter's guns.

And cap at the loading table.

Takes only a few shooters, performs a needed posse chore, and once I'm loaded, I'm free to do other things, like spot, time, etc

--Dawg

  • Like 4

Share this post


Link to post
Share on other sites
24 minutes ago, Yusta B. said:

I thought Cap&Ball and speedloader were mutually exclusive terms ........ who'd a thunk it ?



Well I suppose Sam Colt thunk it from the beginning.  Paterson flask:




  • Haha 2

Share this post


Link to post
Share on other sites

I like paper cartridges myself, haven't tried them at a match yet, but it's how I carry my reloads to the range right now, I've been doing more Cap and Ball shooting since I'm low on primers and not likely to have ready access for a while.  it's a nice change for a bit.

  • Like 1

Share this post


Link to post
Share on other sites
11 hours ago, doc roy l. pain said:

Can you lay a cylinder over that and tip it up to load all five chambers with powder at once?  Like to find out more about this



Yes that's how it works.

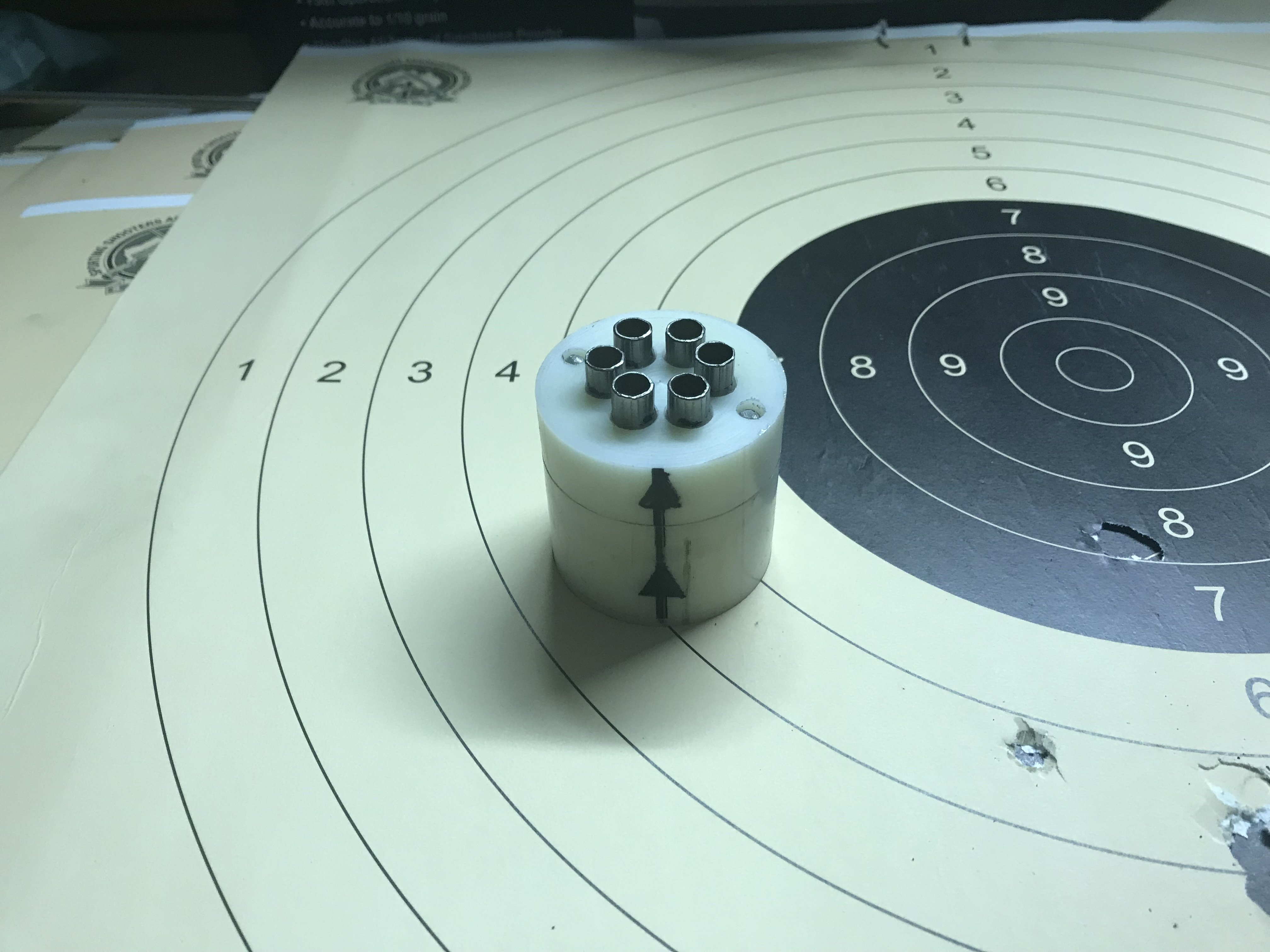

The cavity holds 20g of black (you can make it to what you want) you then place the cylinder on the top and turn it all upside down to fill the chambers in the cylinder.



The really clever bit is if you use filler then you have three segments and you put the filler in first then put the next segment on and fill that with BP. Then you put the top on, place the cylinder on and tip it all upside down. As most of the guys are saying when you use straight powder there isn't a big time saving but to some it helps.



These were made for target shooting not Cowboy so that's why it has 6 chambers. You can make them with whatever you want (or put a foam ear plug in the 6th chamber). The plastic version is a little less maintenance heavy as it doesn't rust.

Share this post


Link to post
Share on other sites

I also charge my cylinders at the unloading table, but the priority has to be verifying that shooter's guns get emptied.  Even though the "speedloaders" can expedite charging, my goal is to reduce the # of steps so that I can charge and effectively check shooter's guns.  Having pre-measured loads should make this better.

Share this post


Link to post
Share on other sites

I never perform posse duties when loading  cylinders. It’s a great way to get distracted and make a mistake like loading a ball without powder. I can load my cylinders in less time without distractions and still have plenty of time for posse duties.

  • Like 3

Share this post


Link to post
Share on other sites

That's the neat thing about cap guns.

Everyone eventually finds a way that works for them, and frequently, their way is slightly different, but it still works!

Have fun & be safe,

--Dawg

  • Like 4

Share this post


Link to post
Share on other sites

Used the tubing style speed loader today at a match.  Works great.  Only problem I had was that I can't count.  Almost loaded 6 chambers vs 5.  Caught it before I put the ball in.

I'll be using this technique again.



Oh, and I had a clean match.



BS

  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

The tubes worked well for me on my first try.  Charges were more consistent.  I just carried tubes, oiled wads and my loading stand.

  • Like 1

Share this post


Link to post
Share on other sites

BS & TB:

Excellent!!

Glad this works well for you guys!

--Dawg

  • Like 1

Share this post


Link to post
Share on other sites
On 11/14/2020 at 5:58 PM, Warden Callaway said:

I came up with this years ago.





use some of these to pull out the plugs simultaneously!


Share this post
