Bloody Glen Bob

SBH Hammers

Recommended Posts

Does anyone know who would have SBH hammers for sale? Is the Montado hammer the same as the SBH?

I want to change the hammers on my New Model Vaqueros. I understand they are a drop in fit.



Thanks for any info!

BGB

Share this post


Link to post
Share on other sites

Montado and SHB have the same profile. Difference is in the checkering on the hammer spur.



AFAIK you cannot buy new Montada hammers. They are only available on the SASS Rugers.

Share this post


Link to post
Share on other sites

The SBH hammers were drop in on both of my New Vaqueros.

Share this post


Link to post
Share on other sites

Midway, Brownells, Ruger, etc but they can be hard to find.



Rumor has it that they only make them once a year, and when they are gone, they are gone until the next run.  Some of the cowboy smiths also lay in a stock, so might try them as well.



Normally a drop in job, I've done 3 sets that were, but have also heard of some that needed a little fitting.



I like mine, well worth the effort.  If you're not savvy to taking down a RNV that far, there are vids published by ruger on single action disassembly and re-assembly that are helpful.



Best of luck.

Grizz

Share this post


Link to post
Share on other sites

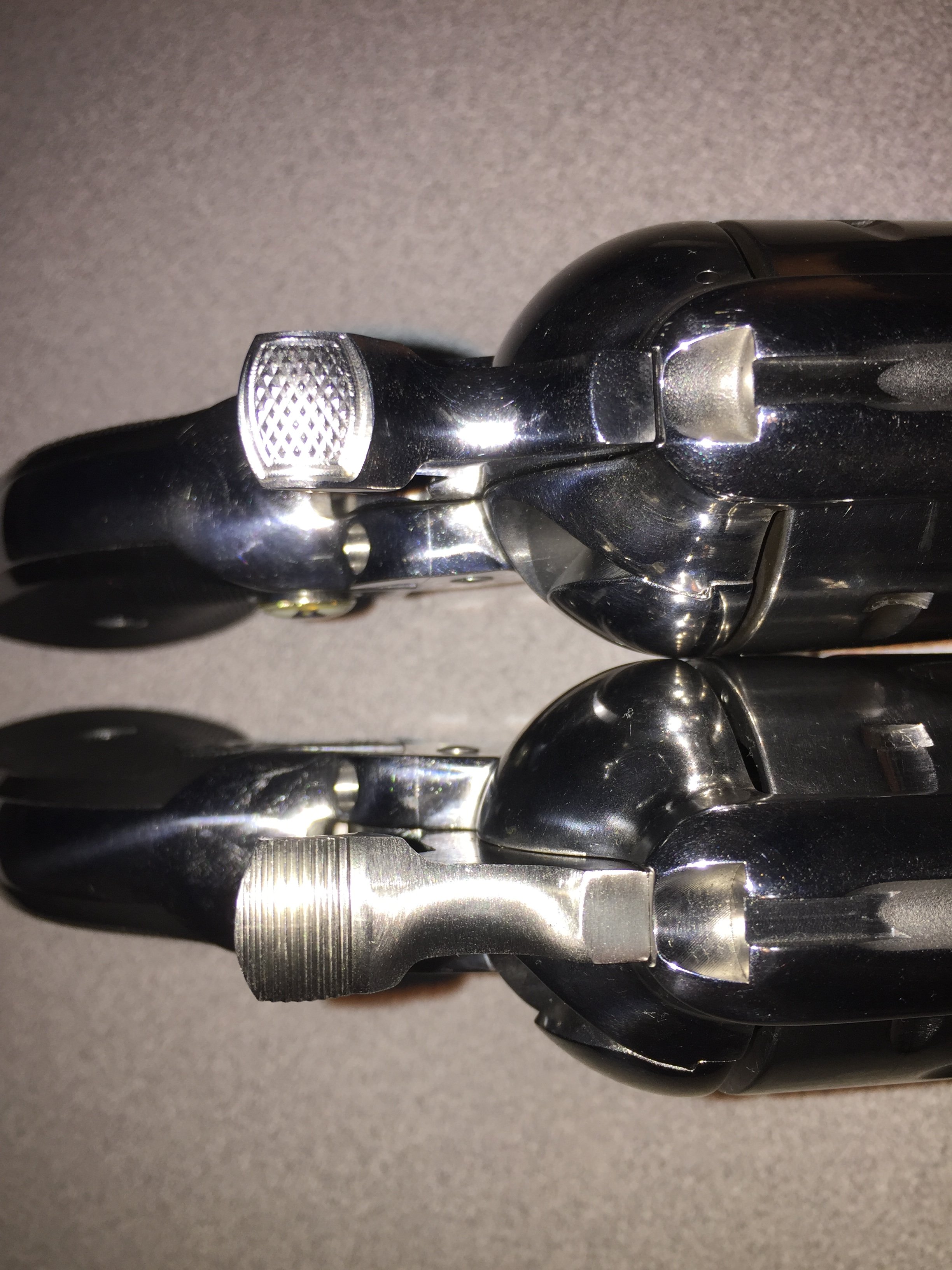

Montado on the top, SBH on the bottom.



Share this post


Link to post
Share on other sites

In the absence of SBH hammers you can use easily available Bisley hammers. They require removal of material, easily done and not around the critical sear area.

Lem and I have done several.



Imis

Share this post


Link to post
Share on other sites

I was just on the Brownell web site.  They do not have any Ruger Vaquero parts available.  I will check on Midway.

Share this post


Link to post
Share on other sites

You might try Boomstick Arms

Share this post


Link to post
Share on other sites

780-001-473 is the Brownells part number. Out of stock but available for back order.

Share this post


Link to post
Share on other sites

Just checked Midway, "out of stock, no backorder"



TB

Share this post


Link to post
Share on other sites


On 8/9/2020 at 6:41 AM, Imis Twohofon,SASS # 46646 said:

In the absence of SBH hammers you can use easily available Bisley hammers. They require removal of material, easily done and not around the critical sear area.

Lem and I have done several.



Imis

My friends call me Chickamauga! The Bisley hammers were inexpensive, readily available, and, if you have a dremel tool or a good friend who knows how to wield one, easily fitted to the Vaquero. Thanks Imis.

Share this post


Link to post
Share on other sites
On 8/9/2020 at 11:20 AM, AZDoc said:

I was just on the Brownell web site.  They do not have any Ruger Vaquero parts available.  I will check on Midway.

By the way, Brownells has lots of Vaquero parts listed. You won’t find a SBH hammer listed there.

Share this post


Link to post
Share on other sites

Boggus I usually get SBH thru Brownells. Got 6 of them about a month ago. Part # kmro4001b

Share this post


Link to post
Share on other sites
On 8/9/2020 at 5:38 AM, Bingo Montana said:

Montado on the top, SBH on the bottom.





The SBH hammer can be installed without any modifications, it will function as it's supposed to, but it does not "fit". The SBH hammer will not fill the gap between the ears. The New Vaquero hammer is bigger than the BH and SBH hammer in that dimension. A New Vaquero hammer, either one, cannot be installed in a BH or SBH without some grinding in that area. It may be semantics, but that gap is not a "fit".



I installed a New Vaquero hammer into my BH, it took some "fitting" before installation was possible.






From left to right; NV hammer, BH hammer, SBH hammer.



FWIW: the Bisley hammer is even larger in that area.












I've attempted to keep the L to R consistent, Ruger BH hammer, Ruger New Vaquero Hammer, Ruger Super Blackhawk hammer, New Vaquero SASS (Montado) hammer. In the rounded area the New Vaquero is app. 0.040" larger in radius than the BH and SBH hammers.



BB



SBH Hammer gap.jpeg

Share this post


Link to post
Share on other sites

Boomstick Arms has them....

I just left there and there was a box with several pairs of Brand New Super Blackhawk Hammers sitting on Jayson's workbench..........

I think some of those were already spoken for......... But he probably has more........ Give him a call.



https://www.boomstickarms.com/
