Sedalia Dave

Interesting table design.

Recommended Posts

Wonder just how stable it really is.



Image may contain: tree, plant and outdoor





  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

I am betting it's not  stable  at all.

  • Like 4

Share this post


Link to post
Share on other sites

Interesting, it looks like it would be very stable to me.  I would imagine it can move side to side a very small amount, but it should not be able to tip in any direction



Then again, I might have welded all the chain links if I built something like that that

  • Like 2

Share this post


Link to post
Share on other sites

Geometrically, it’s perfectly stable.


In the practical world, there’s a bit of wobble.


If I were the artist, the links would be welded and re-coated.

Share this post


Link to post
Share on other sites

No need to weld the chains -  but turnbuckles on the corner chains would be effective.  Also allow for seasonal adjustments.  ;)

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
4 hours ago, Pat Riot, SASS #13748 said:

I am betting it's not  stable  at all.

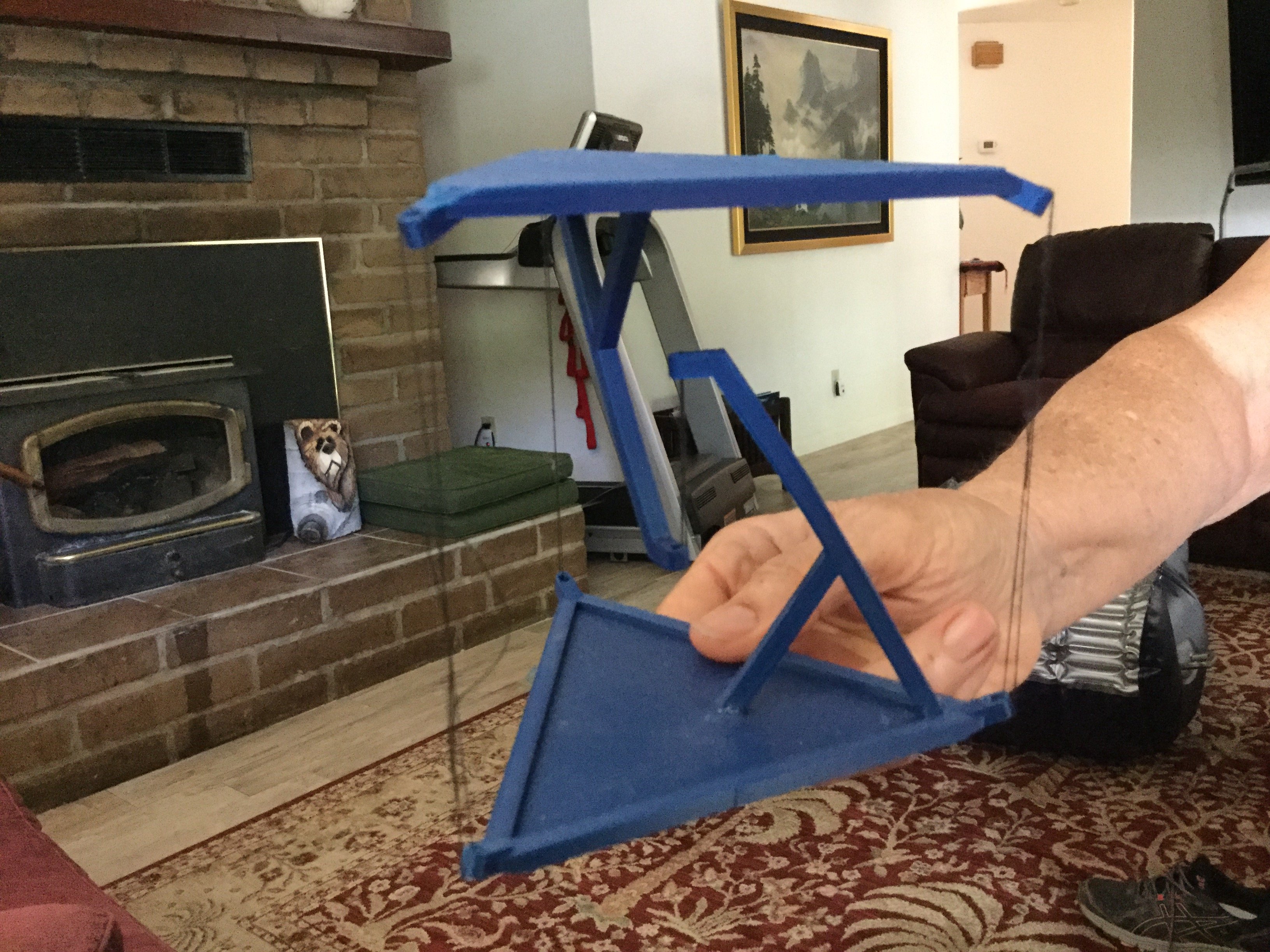

Actually they are very stable, especially the four cornered ones. Here is a three corner one that I 3D printed that is held together with thread. I’m working on one now that will be held together with 1/16” steel cable and will feature fractal wood burning, it will be a four cornered unit. The three cornered one in the picture will hold about 5Lbs. if it’s balanced correctly. The one that I’m building will hold substantially more.


  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites

What keeps them from moving side to side? They look like they would swing.

  • Like 1

Share this post


Link to post
Share on other sites
Posted (edited)
4 minutes ago, Pat Riot, SASS #13748 said:

What keeps them from moving side to side? They look like they would swing.

Tension.




Edited by Yul Lose
  • Like 1

Share this post


Link to post
Share on other sites

my guess would be that any movement would be the result of flex in the support frame.



B)

Share this post


Link to post
Share on other sites
1 minute ago, Wallaby Jack, SASS #44062 said:

my guess would be that any movement would be the result of flex in the support frame.



B)

To a certain degree you are correct. If you’ll notice the two arms in the interior of the blue one that I posted are quite flexible, they are 3D printed after all. When you press down on the top, with your finger or thumb in pretty much the exact center you can see the arms flex. The table in the original OP would have very little flex in that square tubing. If it were built with just two arms in the center there would be much more flex or movement. The chain links are pulling against each other in the four corners and the two opposing chain sections. They call this an impossible table. Most people will look at it and think that the links are welded together right off the bat but they aren’t. There are some Pinterest posters that feature some very interesting impossible tables.

Share this post


Link to post
Share on other sites

What I see is a table that may be stable side to side but it may become a swing long end to loong end.

Share this post


Link to post
Share on other sites
Posted (edited)

Looked them up on Youtube (tensegrity tables). Might have to try to make a simple one.



( I am no woodworker! To those that have the old Bill Cosby records, my woodworking skills are similar - put two grooves in it and call it an ashtray).:P

Edited by Injun Ryder, SASS #36201L
  • Like 2

Share this post


Link to post
Share on other sites
Posted (edited)

Thanks Injun Ryder, now that I know what it is called. I found a couple videos on the picture I originally posted.









Plans for the table

https://docs.google.com/document/d/1-0KAVSyX-IyUFedDS_ATKh06YaANolAL3sAp1feRGys



Edited by Sedalia Dave
  • Thanks 2

Share this post


Link to post
Share on other sites

Okay. So it moves like I thought it would. Maybe not a sway but it does move. Something I find annoying in tables. :D

  • Thanks 1

Share this post


Link to post
Share on other sites

If the chains are all the same length, a lot of movement is possible. But as the difference between the middle chains’ length and the length of the outer chains’ length give it rigidity.

Share this post


Link to post
Share on other sites
2 hours ago, Pat Riot, SASS #13748 said:

Okay. So it moves like I thought it would. Maybe not a sway but it does move. Something I find annoying in tables. :D

Likely really annoying if you've been tippling a bit.

Share this post


Link to post
Share on other sites

One could put bells on it. It would give you a few seconds warning of an earthquake.

  • Haha 2

Share this post


Link to post
Share on other sites
