Help me ID this Screw


Kid Curry, SASS# 2924

Recommended Posts

Posted

Don't know the name....just look it up under "schematics" on Brownells website.



What is DOES though, is keep the finger lever pivot pin from backing out and jamming the action during cycling.



Do you need it? Yep.

Posted

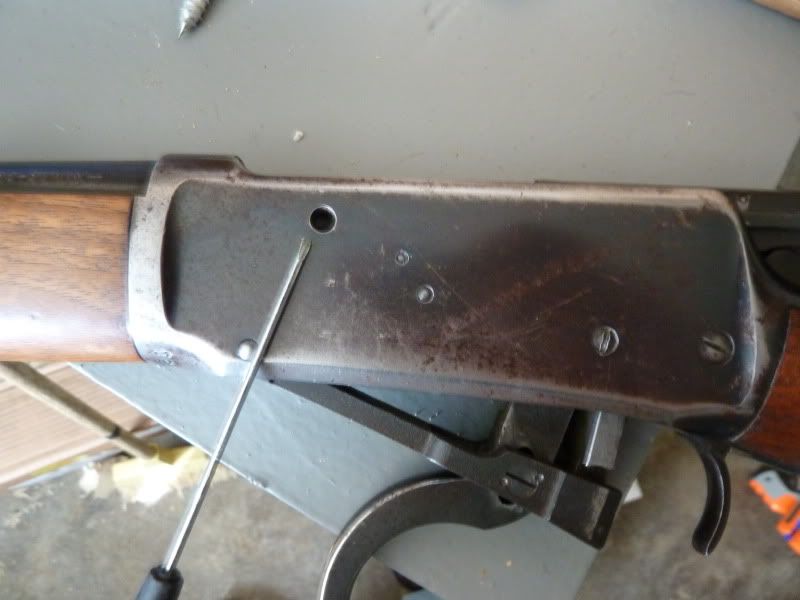

This screw keeps the link lever pin from falling out. I have seen them loose enough to do so. If you are disassembling the gun this screw must be removed and the pin is driven out through this hole by using a punch through the small hole on the other side of the receiver.





Colorado Lightning

Posted

p/n and nomenclature per Winchester along with price:

22 U344910080 FINGER LEVER PIN STOP SCREW $1.50





Manatee & Colorado Lightning are correct as to it's function. Necessary.
