theperson Posted January 11 Posted January 11 so i’ve had a schofield for about a year now, i love it to death. but something started happening as of recently, whenever i shoot it the latch unhinges and it opens up. i can’t find any information as to why this is happening, or any fixes, i figured it might be the latch spring but i just need help. (ps i know not to use here loads, i load all of my bullets and i stick to low velocity loads.) IMG_7939.mov
Timothy Posted January 14 Posted January 14 Assuming it once worked correctly I would make sure the screws are tight and clean and degrease the bearing surfaces of the latch and frame to start.
theperson Posted January 14 Author Posted January 14 8 minutes ago, Timothy said: Assuming it once worked correctly I would make sure the screws are tight and clean and degrease the bearing surfaces of the latch and frame to start. okay thank you! i clean this firearm after every use, but it definitely doesn’t hurt to check, ive never degreased the latch though so i will try that.

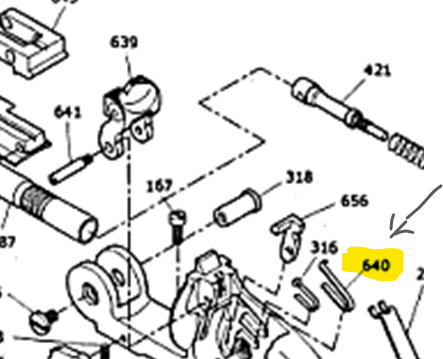

Injun Ryder, SASS #36201L Posted January 14 Posted January 14 My guess would be that the stud latch spring may be damaged/broken. The latch should be a little stiff to pull back. If it is easy to pull back, there is a problem with the spring. If it is a Uberti, see the schematic below (part #640). VTI gunparts may have them. S&W PC 2000 Schofields have a different spring setup and may be available from S&W.
theperson Posted January 14 Author Posted January 14 3 minutes ago, Injun Ryder, SASS #36201L said: My guess would be that the stud latch spring may be damaged/broken. The latch should be a little stiff to pull back. If it is easy to pull back, there is a problem with the spring. If it is a Uberti, see the schematic below (part #640). VTI gunparts may have them. S&W PC 2000 Schofields have a different spring setup and may be available from S&W. i had a similar thought, so i opened it up to see any damage/weakening in the spring, and to me the spring still seemed pretty stiff, it may potentially be weaker than it should be, so i may as well order another spring, thank you for your help!
Rooster Ron Wayne Posted January 14 Posted January 14 Biggest problem with that No.3 design , Was people taking to big of a thumb when cocking the gun. Pulling the latch 1/2 way back or more . Then with a light spring , unit coming unhinged . Try watching how you are cocking the gun several times and see if it comes unhinged . Rooster
Abilene, SASS # 27489 Posted January 14 Posted January 14 1. What manufacturer? If it is ASM (Armi San Marco) then it is common with them. Bad guns. 2. Always wear eye protection when shooting.
theperson Posted January 14 Author Posted January 14 1 hour ago, Rooster Ron Wayne said: Biggest problem with that No.3 design , Was people taking to big of a thumb when cocking the gun. Pulling the latch 1/2 way back or more . Then with a light spring , unit coming unhinged . Try watching how you are cocking the gun several times and see if it comes unhinged . Rooster i honestly didn’t really even think about that, i will try that, thank you!
theperson Posted January 14 Author Posted January 14 2 minutes ago, Abilene, SASS # 27489 said: 1. What manufacturer? If it is ASM (Armi San Marco) then it is common with them. Bad guns. 2. Always wear eye protection when shooting. the manufacturer is uberti (taylor’s and co) i know that there was an issue with those, but i figured that uberti may have fixed it yeah that was my bad, i had some protection in my shooting bag, but skimmed over it
